Optical Profilometer

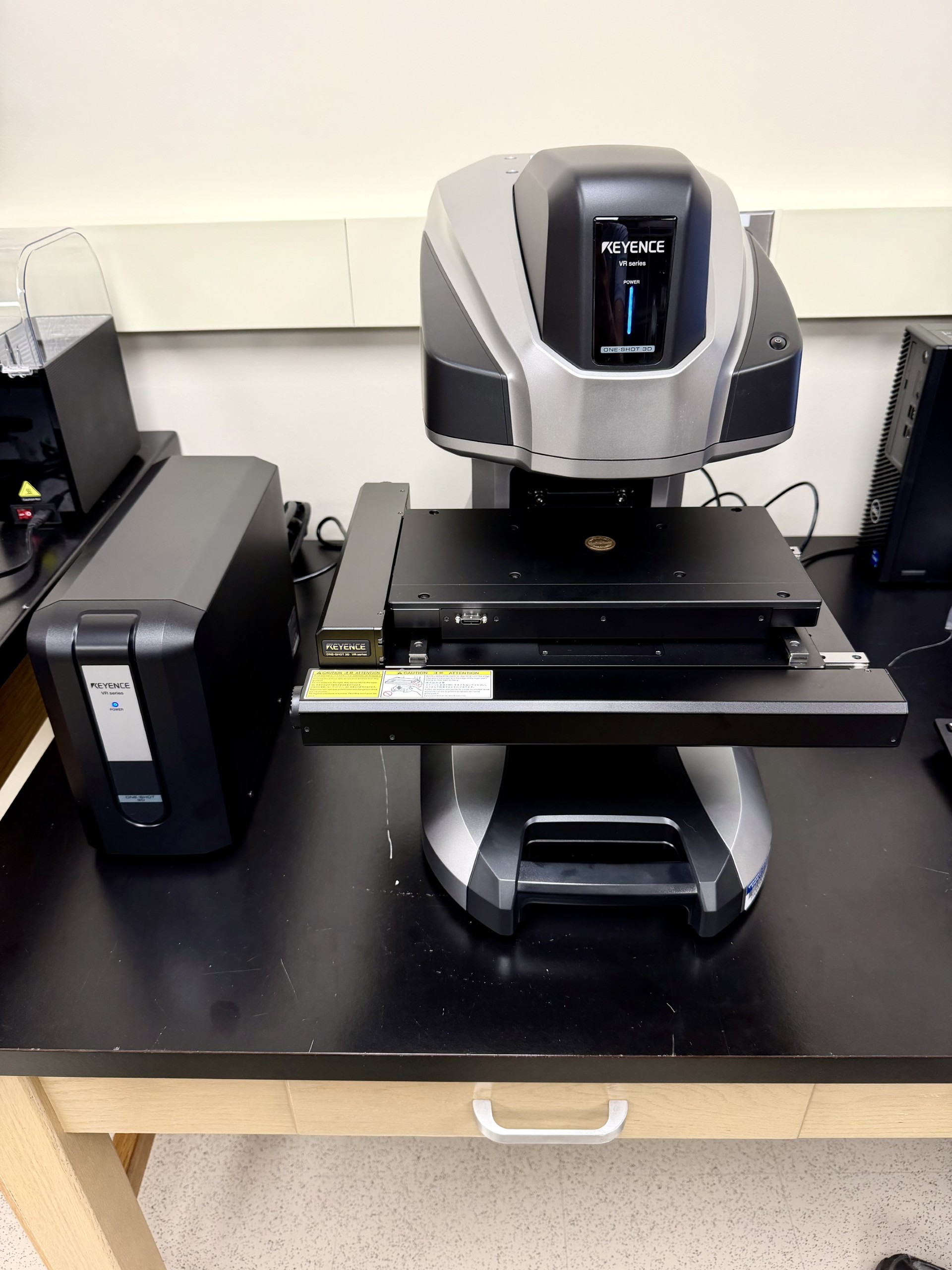

Keyence Optical Profilometer VR-6000
The VR-6000 Wide-Area Optical Profiler performs non-contact measurement to replace stylus profilometers and roughness meters. This 3D profile system captures full-surface data across the target at 0.1 µm resolution, enabling measurement of features that cannot be measured with probe-type instruments. The system captures detailed surface topography without the need for sample preparation or physical contact, making it ideal for delicate or soft materials.
The VR-6000 enables users to acquire full-field surface data in seconds, generating accurate measurements of roughness, step height, volume, and form. Its intuitive software allows for streamlined analysis, automated measurement routines, and easy data visualization, supporting both routine quality control and advanced research applications.
Key capabilities include:
- High-speed 3D surface imaging with sub-micron resolution
- Non-contact measurement, eliminating risk of sample damage
- Quantitative analysis of surface roughness, height, and volume
- Large field-of-view with stitching for extended area analysis
- User-friendly interface with customizable workflows
For additional information about this piece of equipment, see the Calendars, Contacts, and Fees pages.
| Primary Contacts | |
|---|---|
| Secondary Contacts | |
| Manufacturer | Keyence |
| Equipment Model | VR-6000 series |
| Location | B650R |
| Phone Numbers | (217) 265-5071 |
